Year:
1994
Dimensions:
14.75m x 4.75m x 1.30m
Material:
GRP
Bed place:
4 + 2
CE-category:
---
Berth:
onbekend
Motor:
2 x 435 Hp Caterpillar 3208 Diesels
Price:
Sold

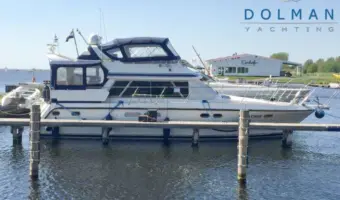

Horizon 46 Aft Cabin
A luxurious vessel with a detailed specification
Specifications:
General:
| Hull shape | Deep - V |
| Deck construction | GRP with teak deck |
| Superstructure | GRP |
| Rudder | 2 x |
| Steering system | Hydraulic |
| Windows | Single glass with s/s strips |
| Displacement | 18.000 |
| Vertical clearance | +/- 4.30m with folded radararch |
| Shipyard | Horizon - Taiwan |
| Designer | Horizon - Taiwan |
| CE-category | Not applicable - yacht build before 1998 |
| Other | A vessel for long range cruising with a extended crew |
Accommodation:
| Material, colours | Teak wood laquered interior - creme carpet - teak wood flooring galley |
| Curtains | Creme upholstery - creme curtains - blinds |
| Saloons | 3 |
| Cabins | 2 |
| Berths | 4 + 2 |
| Headroom | +/- 2.00m |
| Toilets | 2 x vacuum |

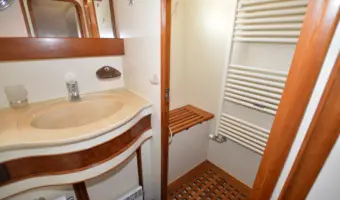

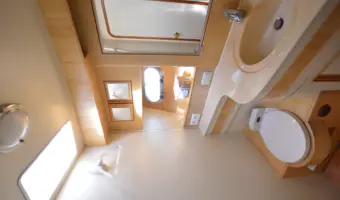

| Shower/bath | Toilet - sink - shower x 2 |
| Radio/CD player | Radio-Cassette |
| Television | Present in saloon and cabins |
| Cooker & fuel | Electric-ceramic 4 rings |
| Oven | Combi microwave - grill - oven made Siemens |
| Microwave | Combi microwave - grill - oven made Siemens |
| Fridge & power source | In galley 220V |
| Freezer | Above refrigerator galley |
| Heating | Warm water heating |

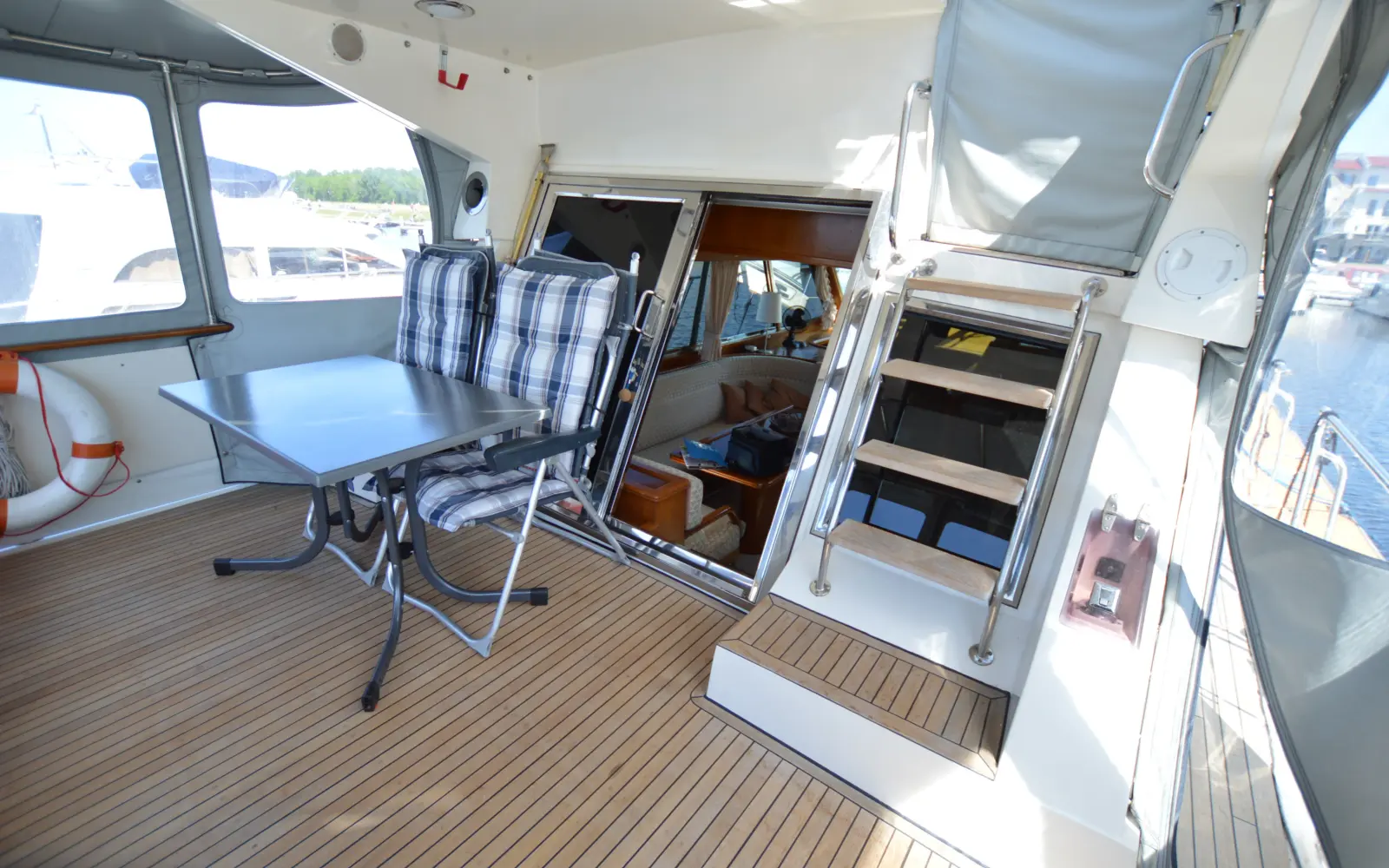

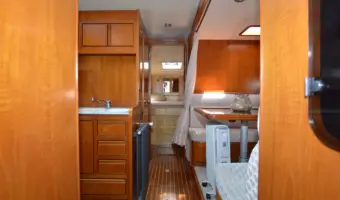

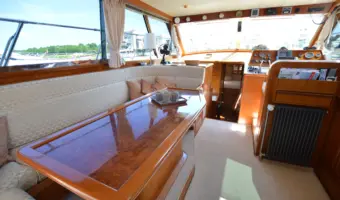

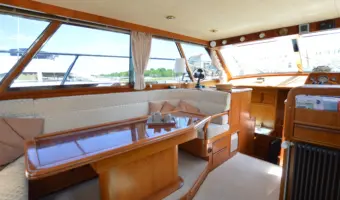

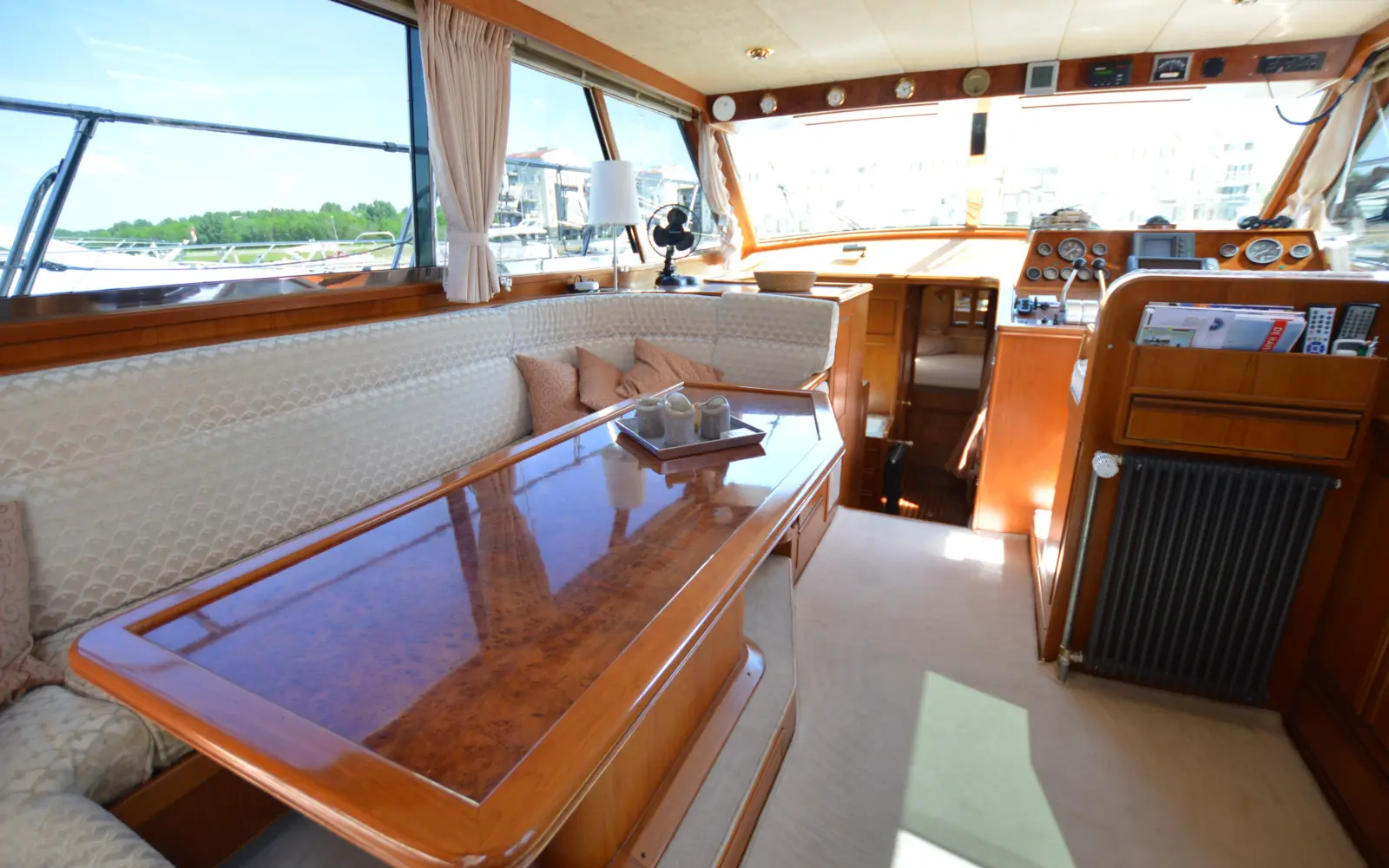

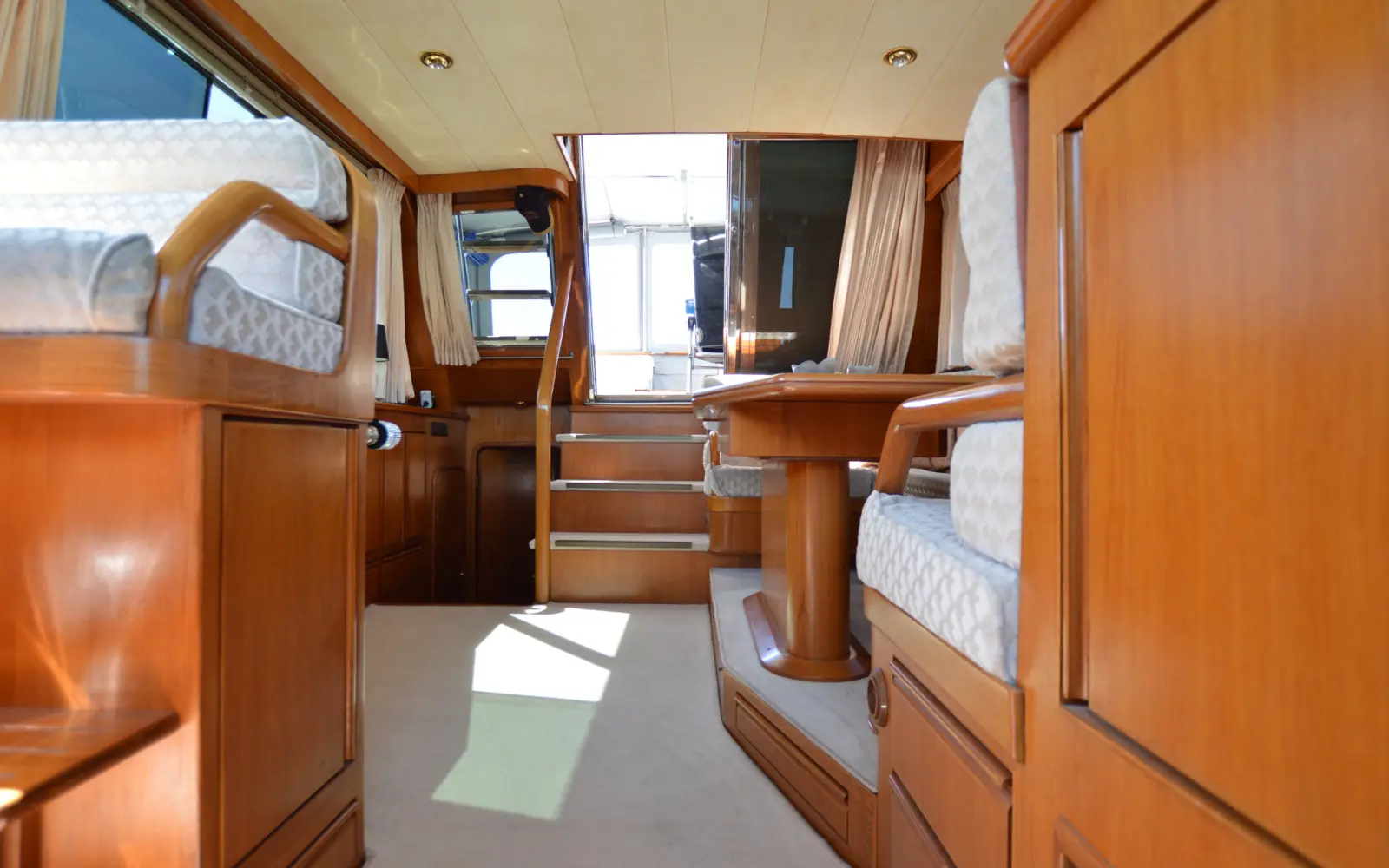

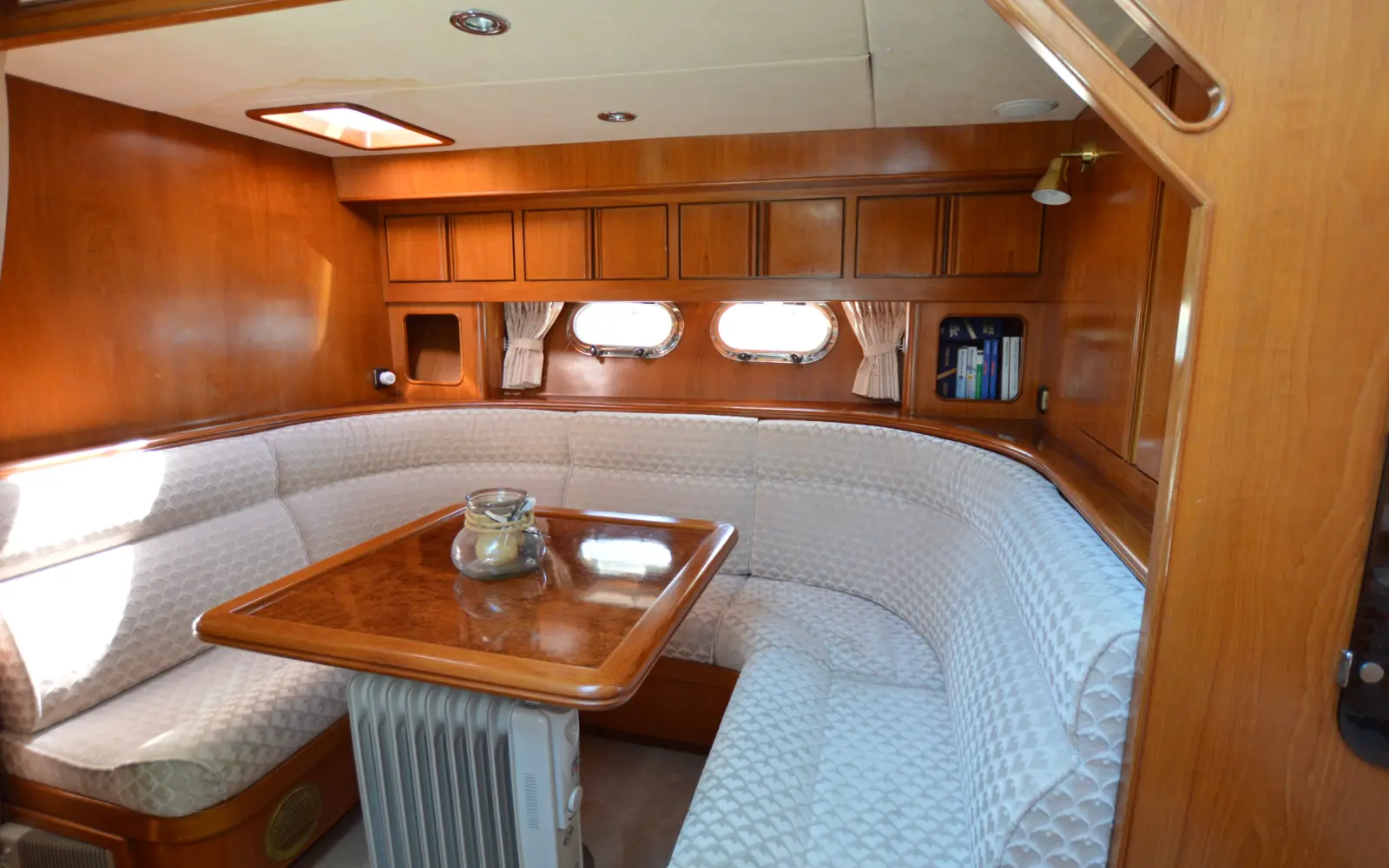

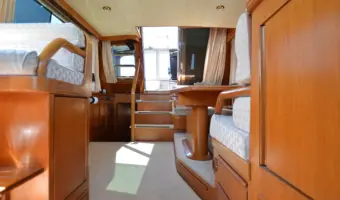

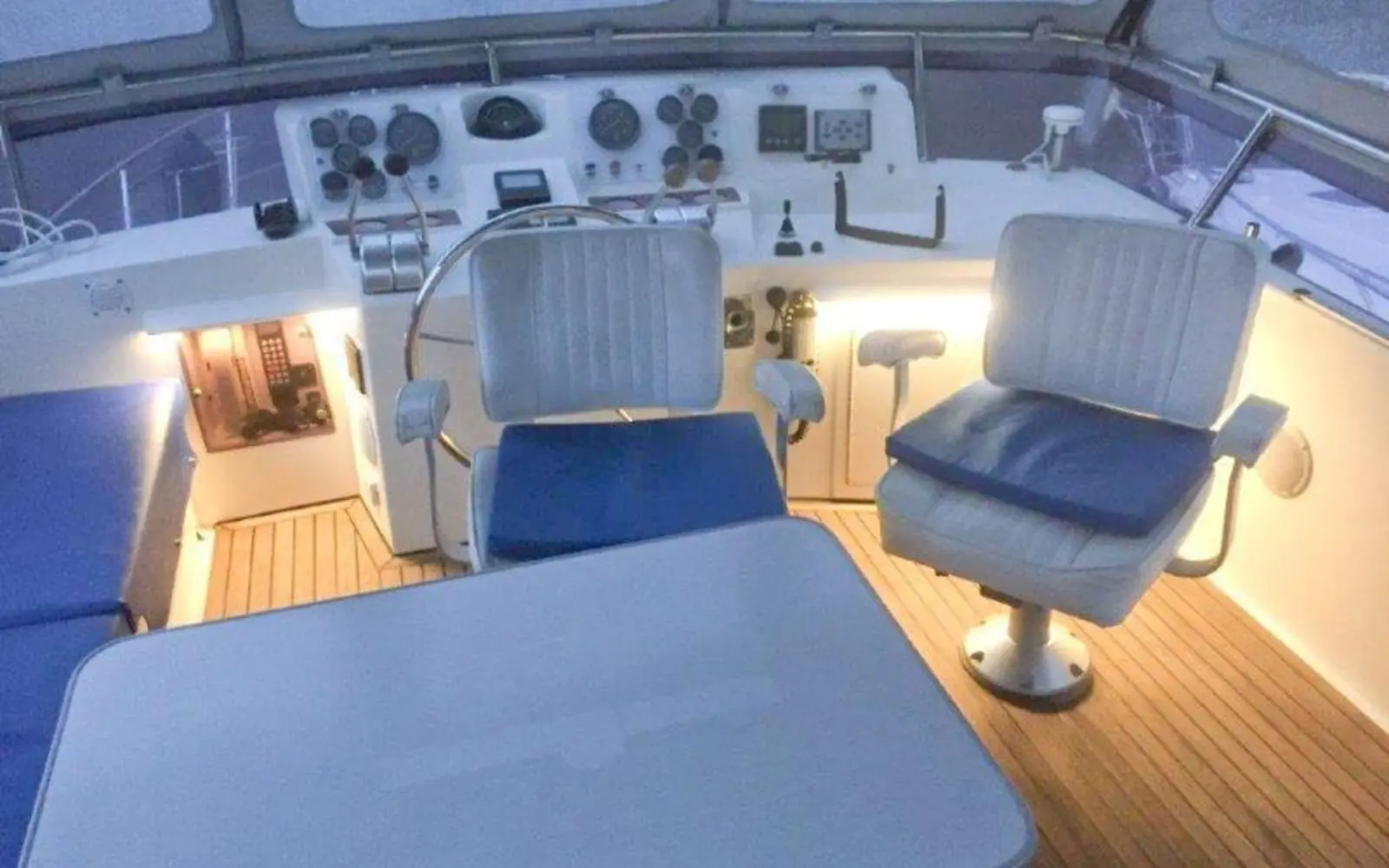

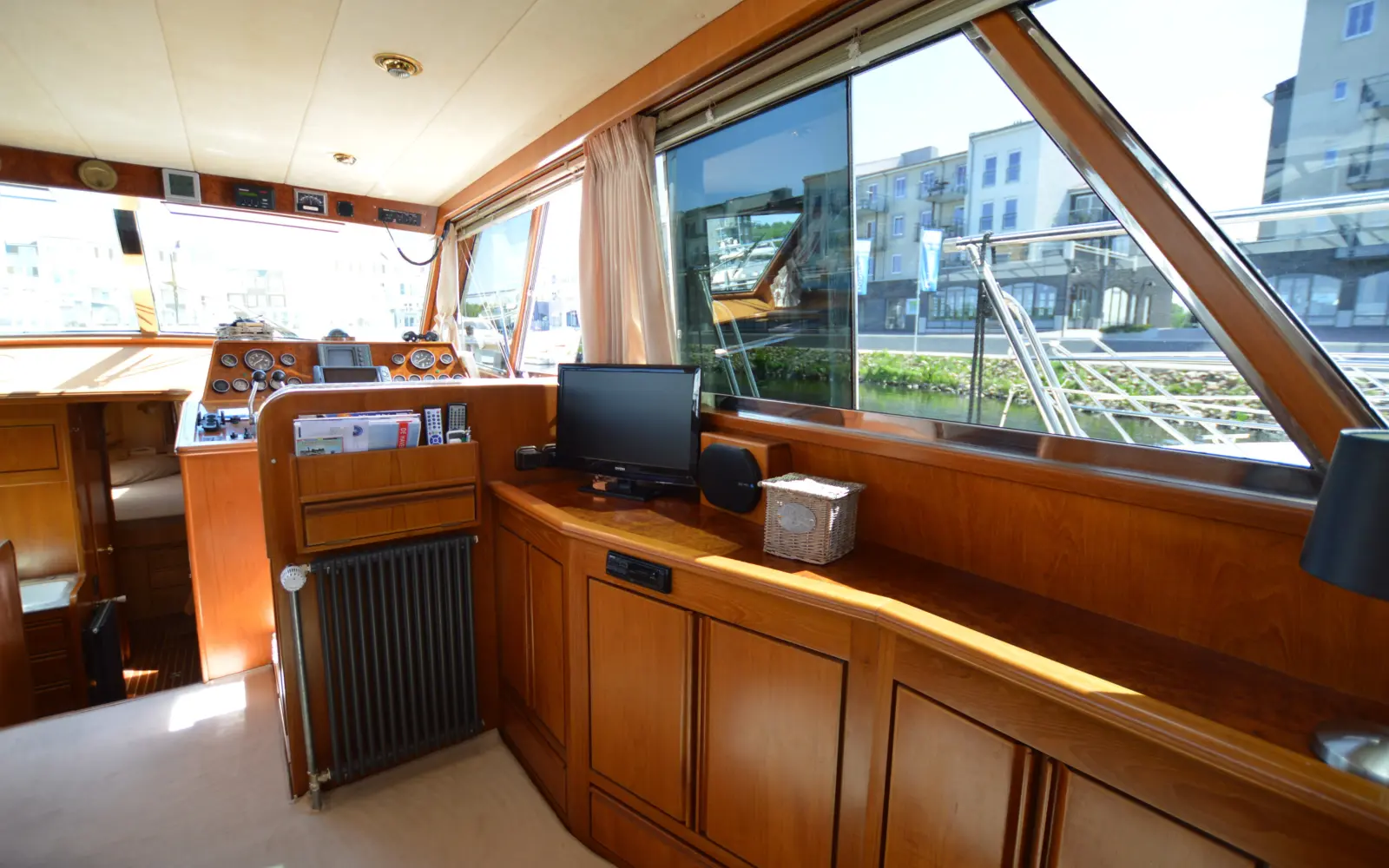

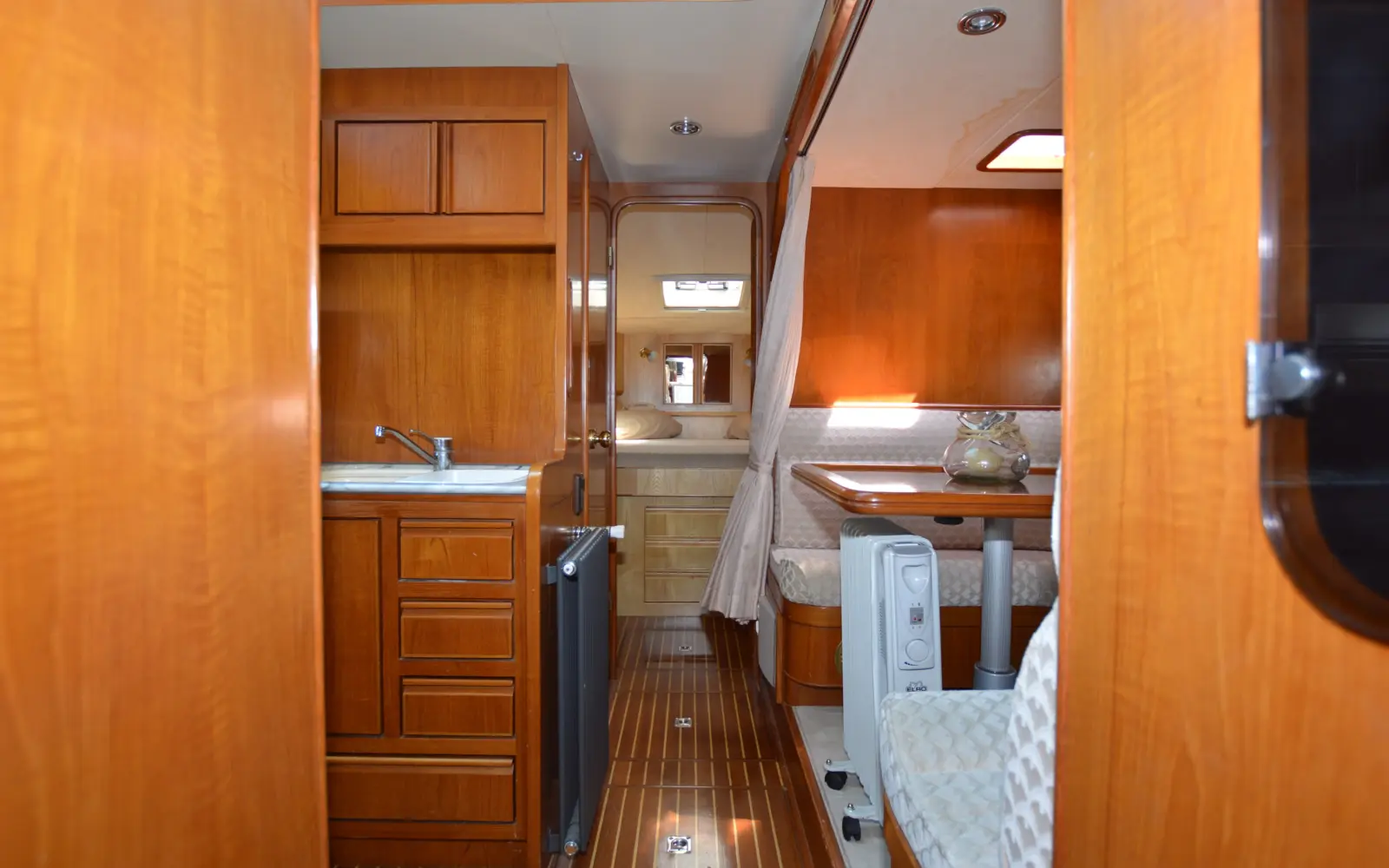

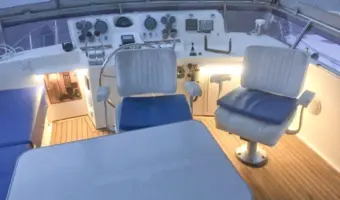

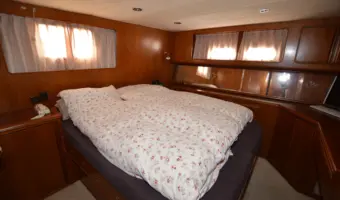

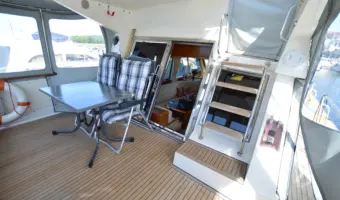

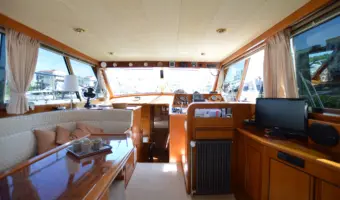

| Other | Spacious saloon with port side U-shaped settee and SB sideboard adjacent the helm position with helmseat, port galley with granite galley worktop and two sinks, SB side the dinette U-shaped, passageway to forward cabin (beech interior) with french bed, adjacent the bathroom, aft cabin with double bed with adjacent the bathroom with toilet-sink-shower, from saloon a patiodoor to the spacious cockpit entirely covered with a lockable canopy, from the cockpit s/s stairs to the flybridge, flybridge with helm position, from the cockpit acces to the side walkways, s/s stairs to the bathingplatform |
Motor, Electronics & Water:

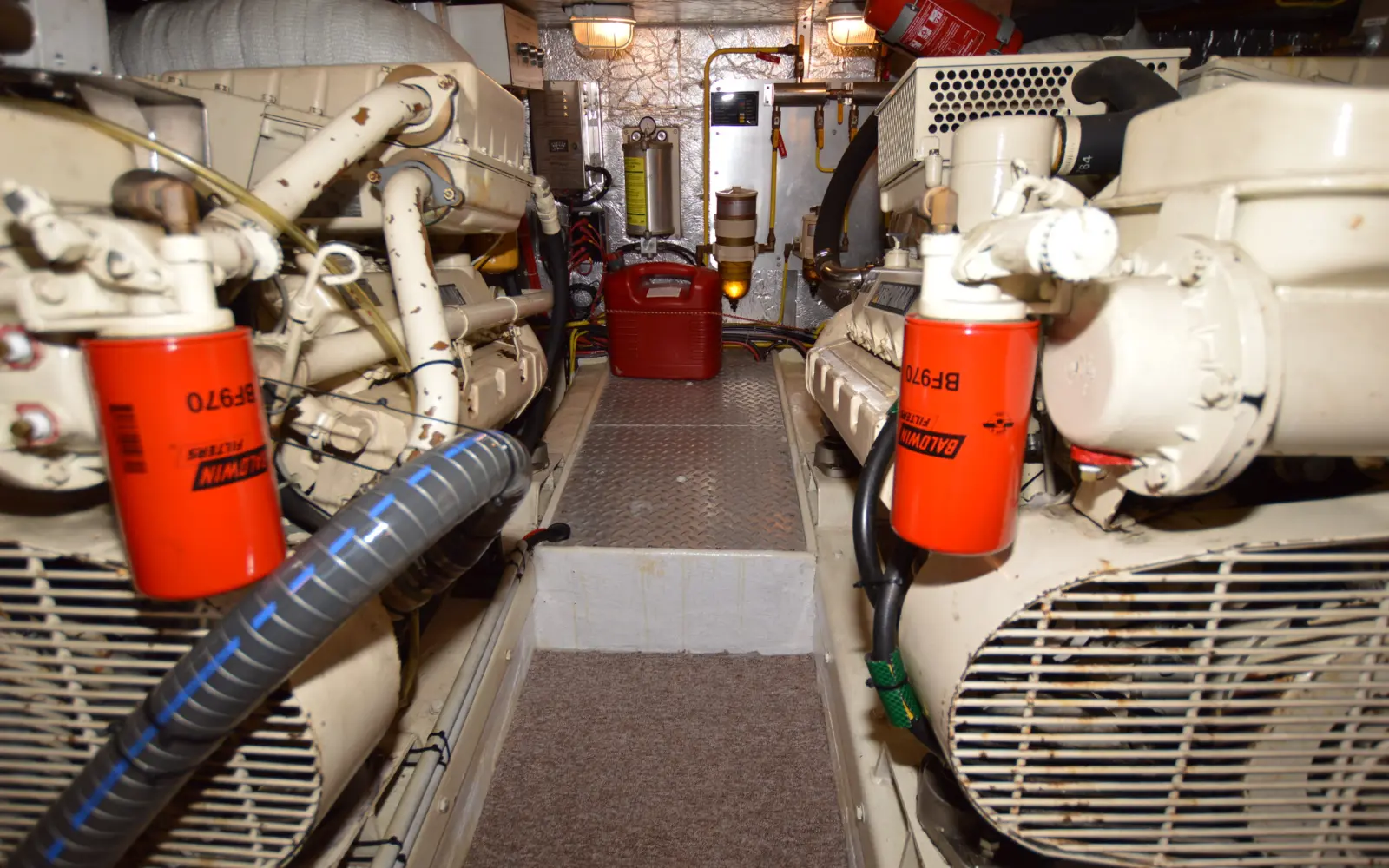

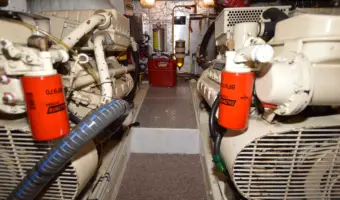

| Power | 2 x 435 Hp |

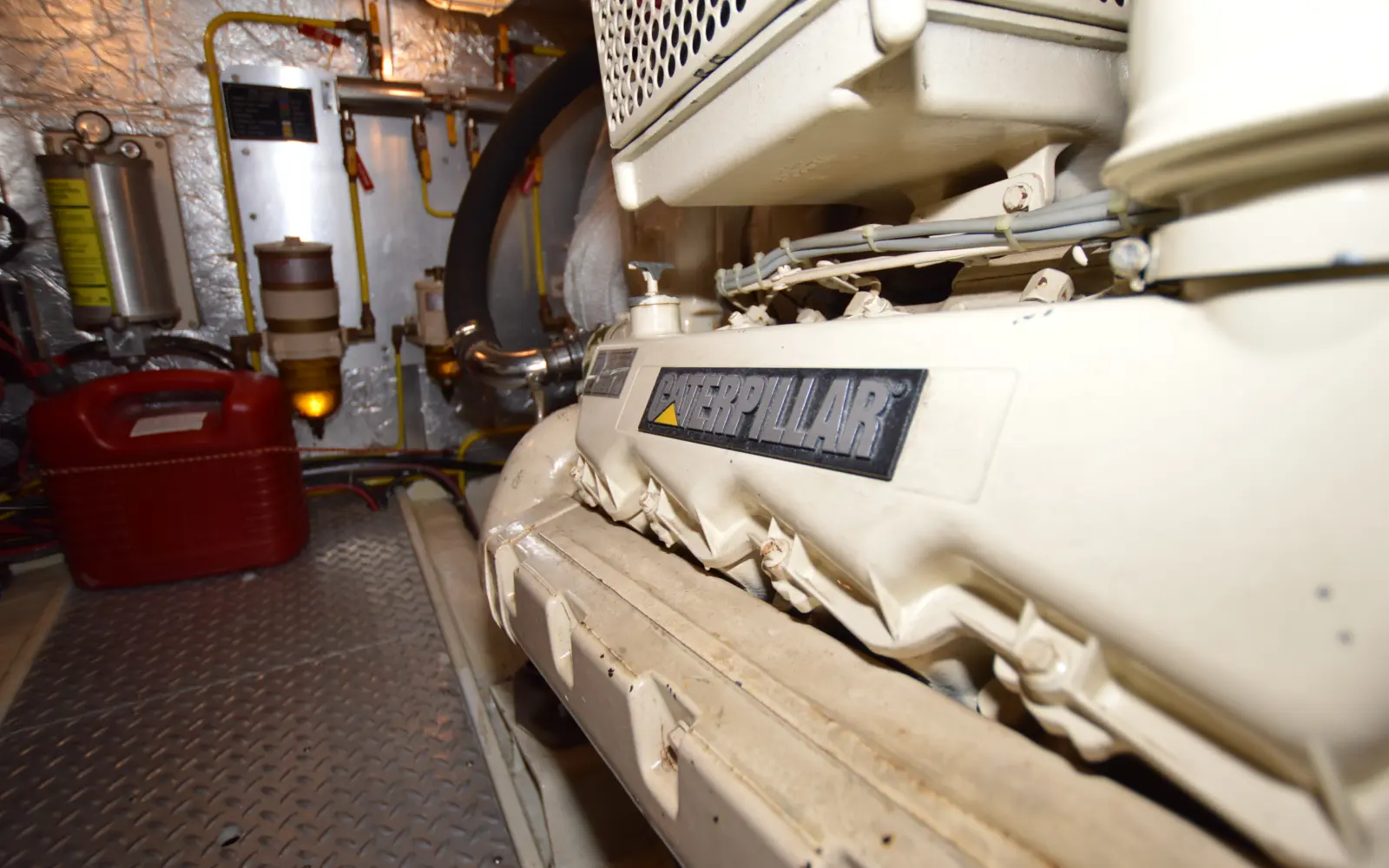

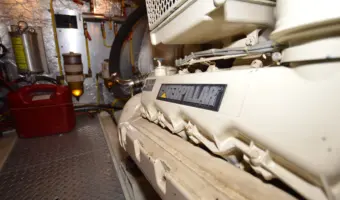

| Brand | Caterpillar 3208 |
| Number of identical engines | 2 |
| Year | 1994 |
| Engine hours | +/- 2000 |
| Fuel | Diesel |
| Fuel tanks | 1.600 L |
| Cooling system | Internal and external |

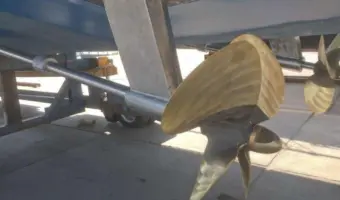

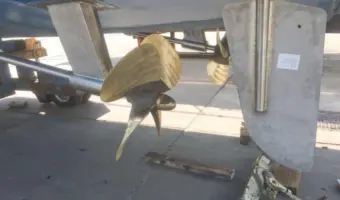

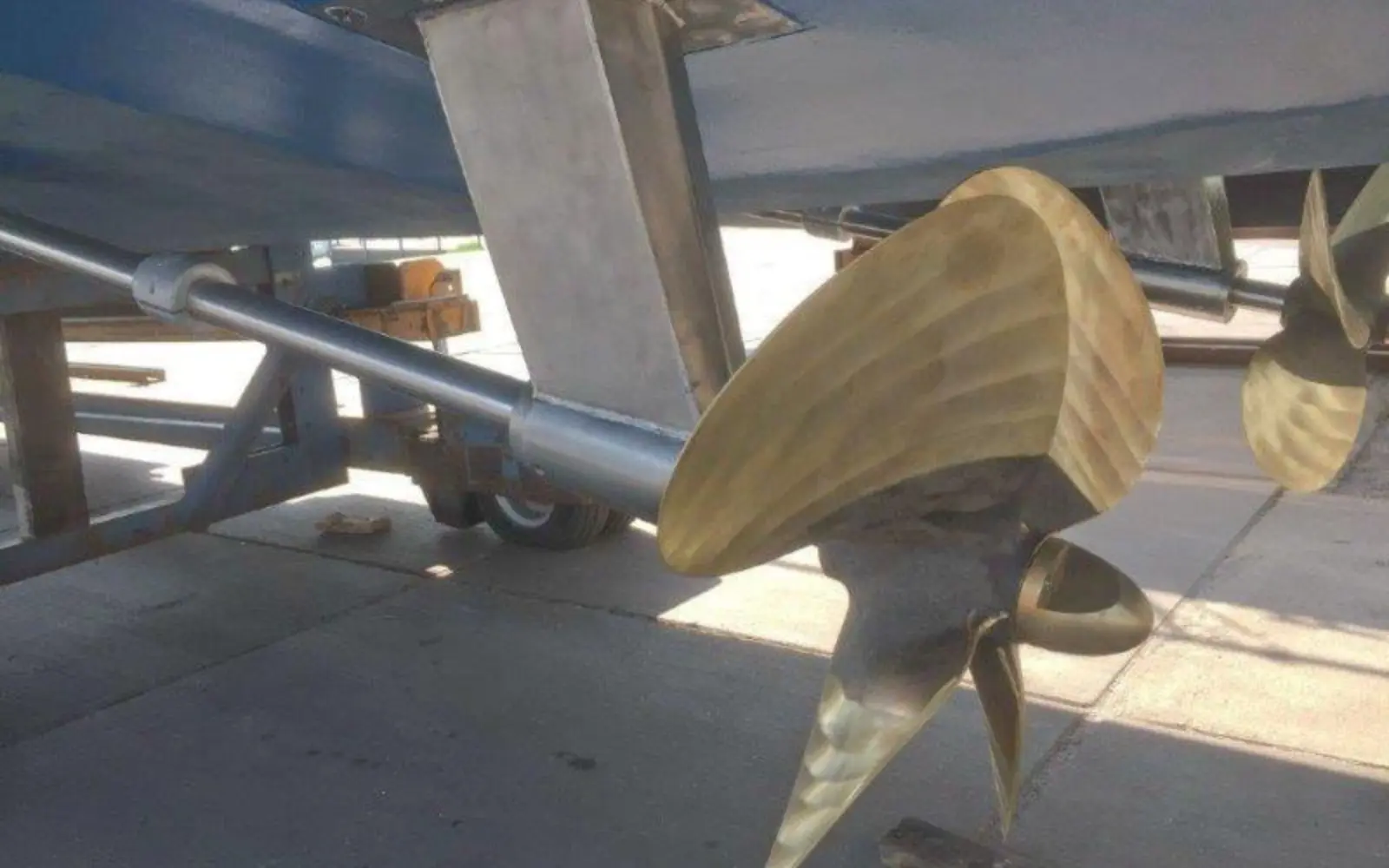

| Propulsion | Shaft |
| Trimflaps | Electric-hydraulic trimmtabs Bennet |

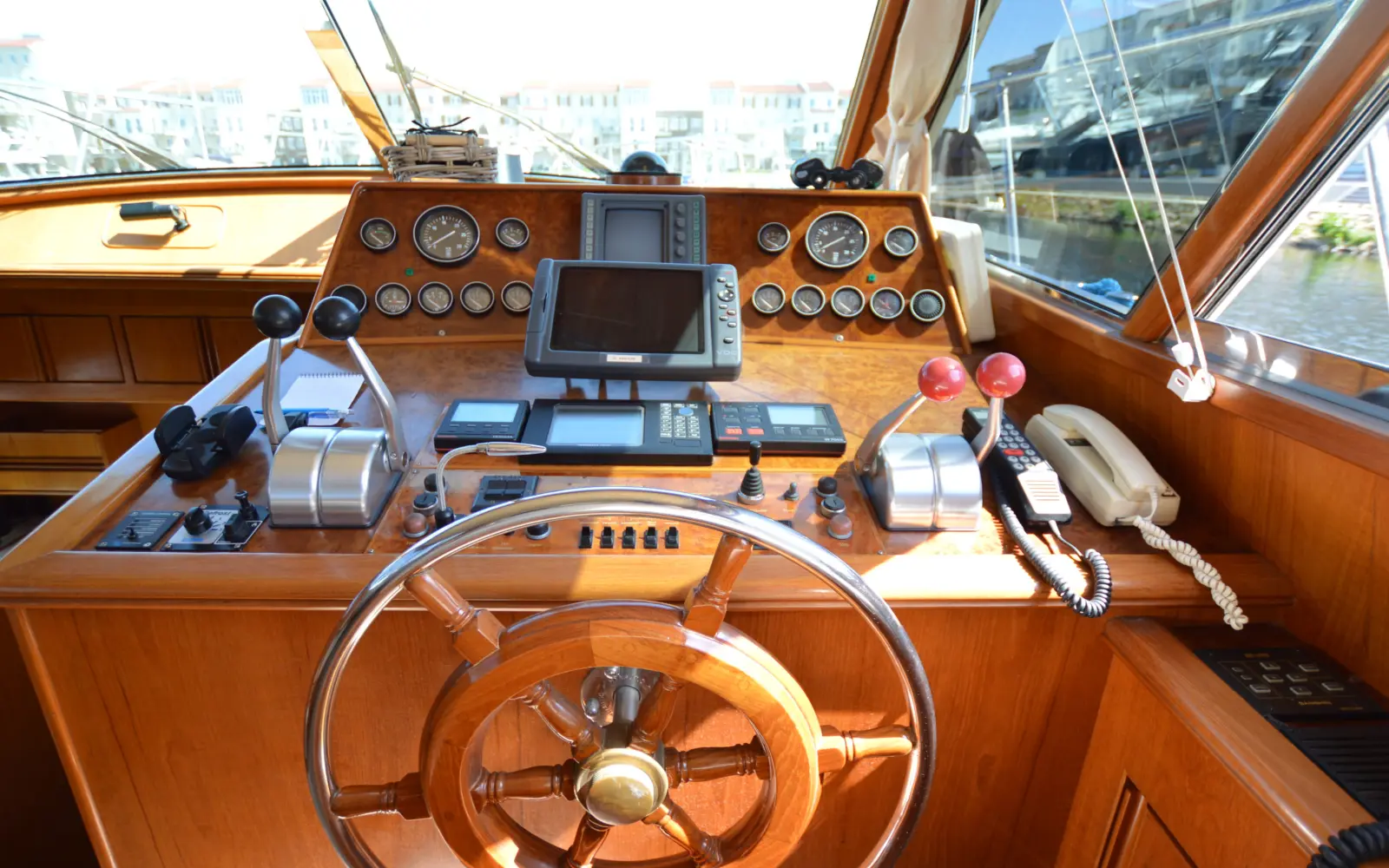

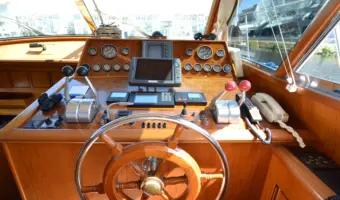

| Measuring instruments | Present at helm position |
| Bow thruster | Present electric |
| Voltage | 220V + 12V |
| Control panel | Present |
| Battery | Main circuit- and start |
| Battery charger | Present |

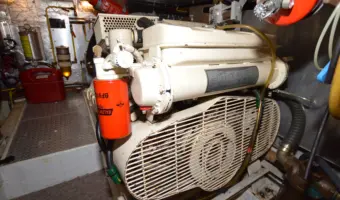

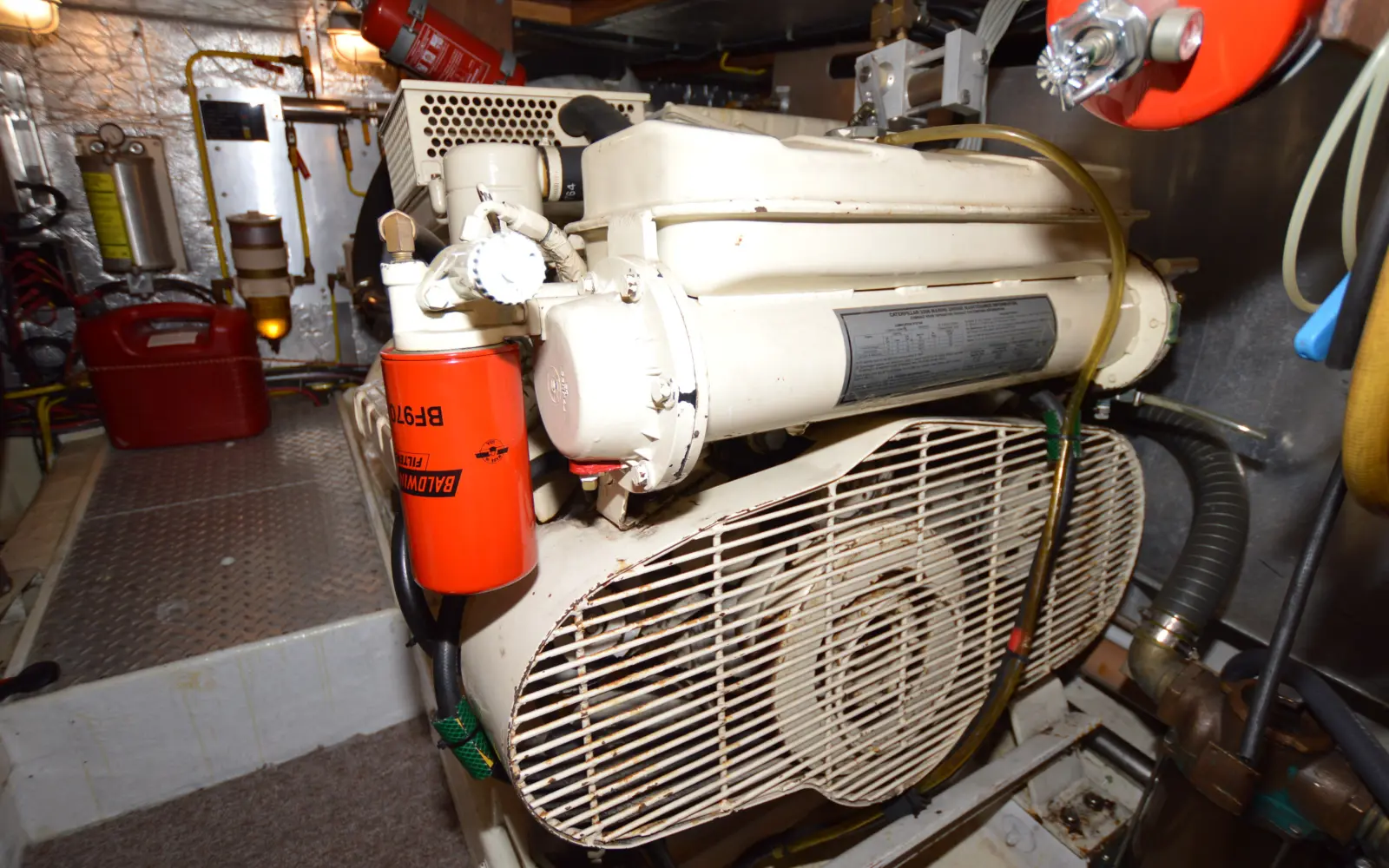

| Generator | Present Onan 6,5 KVH - 910 hours |
| Dynamo | Present x 2 |
| Inverter | Present Victron |
| Water system | Electrical pump |
| Hot water | Via calorifier and engines |
| Water tank & material | 800 L |
| Waste water tank | 200 L |
| Shorepower | 220V with cable |
| Voltmeter | Present |
| Tachometer | Present |
| Water tank gauge | Present |
| Fuel tank gauge | Present |
| Oil pressure gauge | Present |
| Temperature gauge | Present |

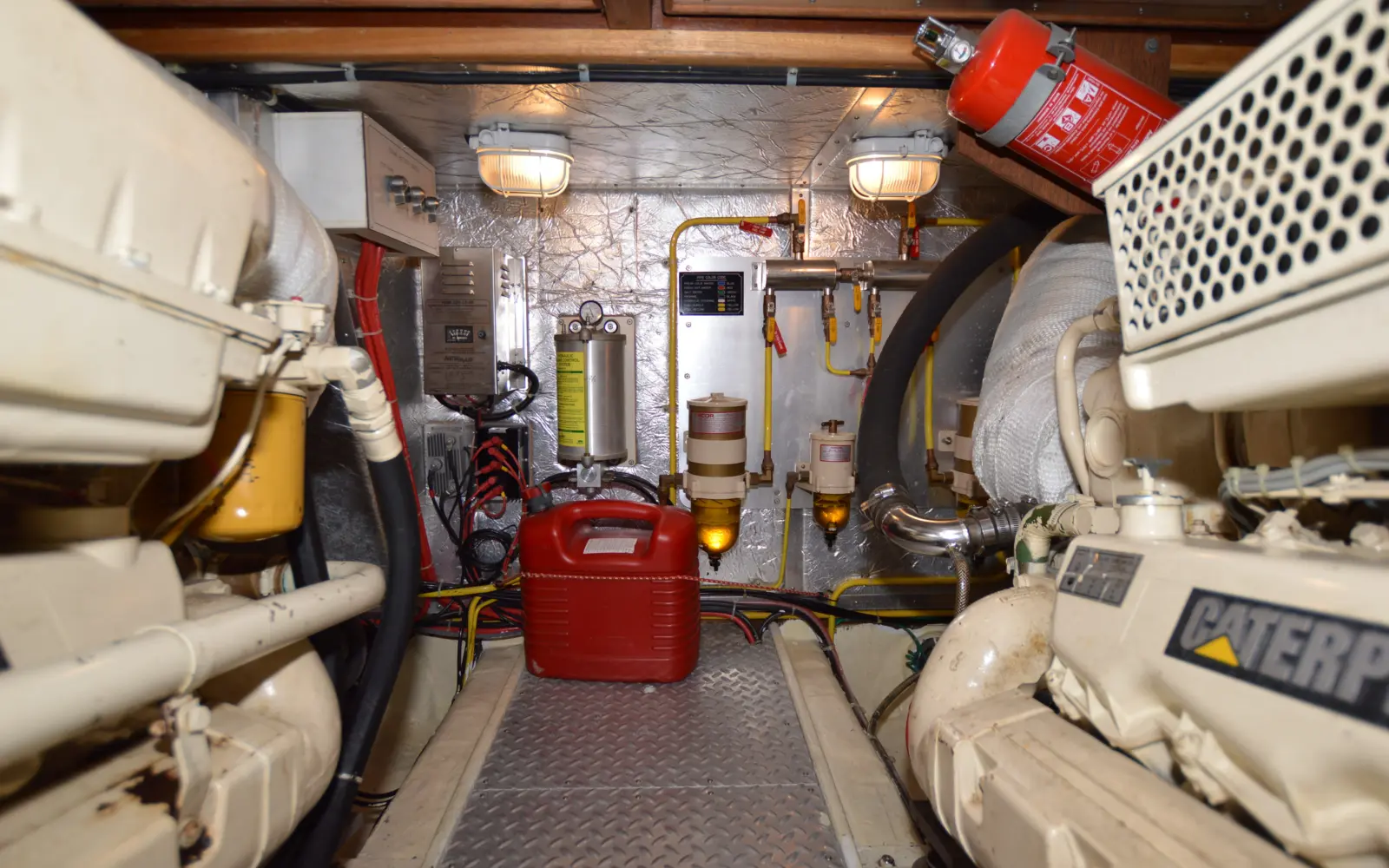

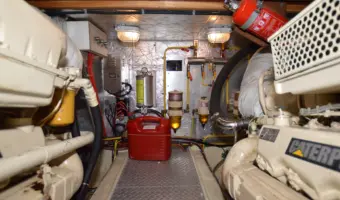

| Other | Transom shower hot-cold, separate throttle and gear engine controls, ventilation in engine room |
Navigation & Electronics:
| Navigation lights | Present |
| Compass | Present at both helm positions |
| Rudder position indicator | Present via autopilot |
| Log/speed | Present Autohelm Tridata |
| Depth gauge | Present Autohelm Tridata |
| Autopilot | Present Autohelm ST7000 |
| Radar | Present Raytheon R41X |
| GPS | Present |
| Chart plotter | Present VDO |
| Charts, guides | On request |
| Other | All important equipment is present ! |
Equipment:
| Anchors & material | Present |
| Anchor windlass | Electric |
| Fenders, lines | Present |

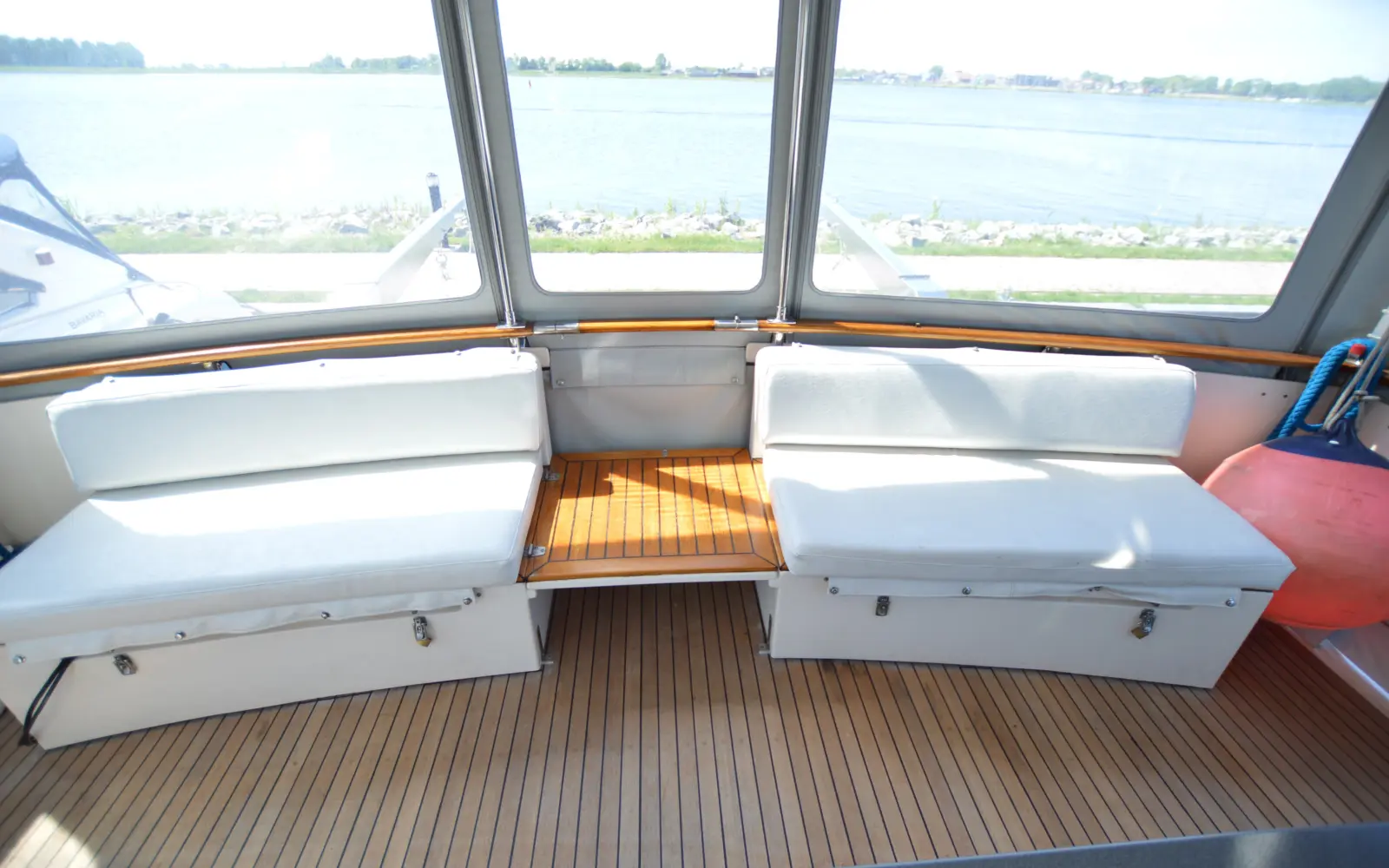

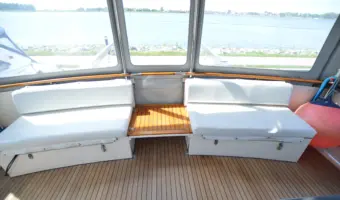

| Outdoor cushions | Present in cockpit |
| Bimini | Biminitop to flybridge |
| Swimming ladder | Present |
| Swimming platform | Present |
| Sea rails, pushpit, pullpit | Present in s/s |
| Dinghy | On request |
| Outboard engine | On request |
| Davits | Davits in s/s manual operated |
| Other | Folding radararch, springcleats, two electrically operated wipers, opening windows in saloon, fender baskets, SB and port opening in guard rail, mosquito screens to portholes, halogen lighting, cockpit speakers, cockpit with two storage lockers, intercom, cockpit lighting, searchlight Sanshin, demist system to front windows, deckwash to aft deck, deck outlet for holdingtank, clock, barometer, loudhailor |
Safety:
| CE-standard | Not applicable - yacht build before 1998 |
| Bilge pump | Present electric |
| Fire extinguisher | Present in engine room and fire extinguishers loose on board |
| Other | A solid build vessel |
